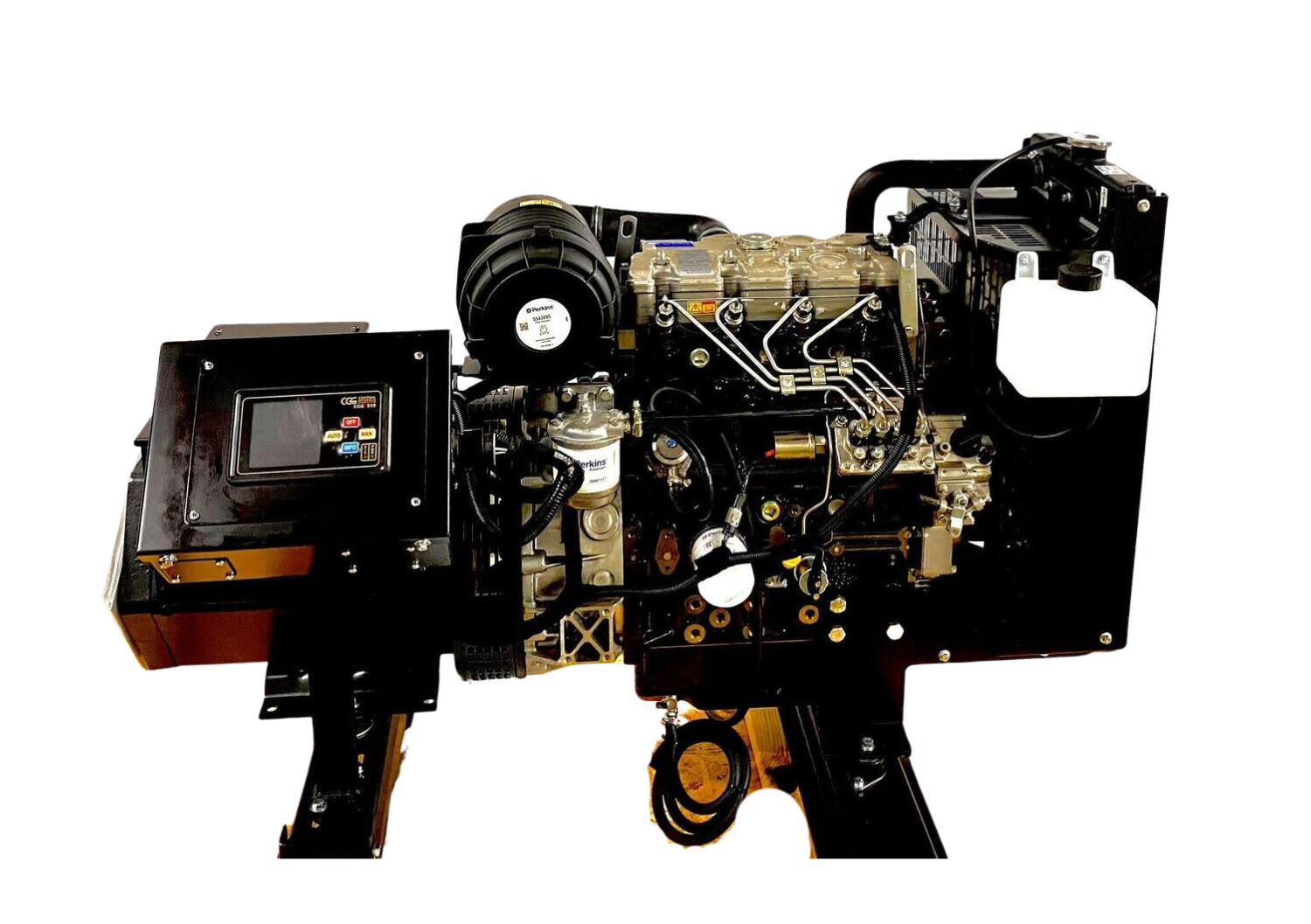

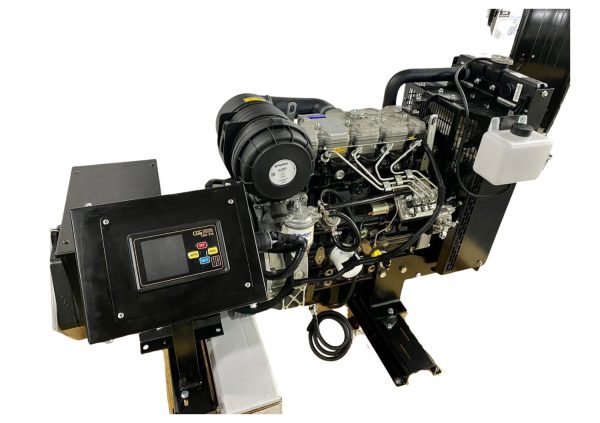

25KW Single or Three Phase 404D-22 Perkins Diesel Gen Set – Tier 3 Standby

Product Description

Generator Set Details:
25KWKW (25,000 watts) continuous output
AS440 AVR (automatic voltage regulator) installed to maintain constant voltage under load
Perkins industrial diesel engine model 404D-22, 1800rpm
Price includes two wire auto-start controller
Fuel tank, battery, and oil sold as accessories

Generator Head Details
CGG184F 25KW (25,000 watts)
Auxiliary Boost Winding (150% boost of rated power for 5 seconds)
AS440 AVR (Automatic Voltage Regulator)
Winding 06 – 4 Wire 1 Phase (120/240V) / Winding 311 – 12 Wire 3 Phase (277/480V)
Class H Insulation
60 HZ
4 Pole 1800 RPM
1.0 Power Factor 1 Phase / .8 Power Factor 3 Phase
Temp Rise/Ambient (125/40)
Unit Weight: 405lbs.
Single Bearing (direct connect through SAE bellhousing & flywheel)
40 HP Diesel engine required for full output, may use engine with less HP but will not produce full output
56 HP Gas engine required for full output, may use engine with less HP but will not produce full output

These generators are of the synchronous drip proof salient and are very heavy and rugged in construction and easy to maintain. They are built to IEC34, Nema MG1-22, GB755, CSA C22.2-100, VDE 0530 and ASB59 standards. Replaces the following: Stamford, Mecc-Alte, Marathon, Leroy Somer, and Lima Mac.

GTR-310 Controller Specs

High water temp shutdown
Low oil pressure shutdown
RPM gauge
Frequency meter
Hour meter
Over and under rev protection
Remote start with auto transfers switch (auto transfer switch not included
