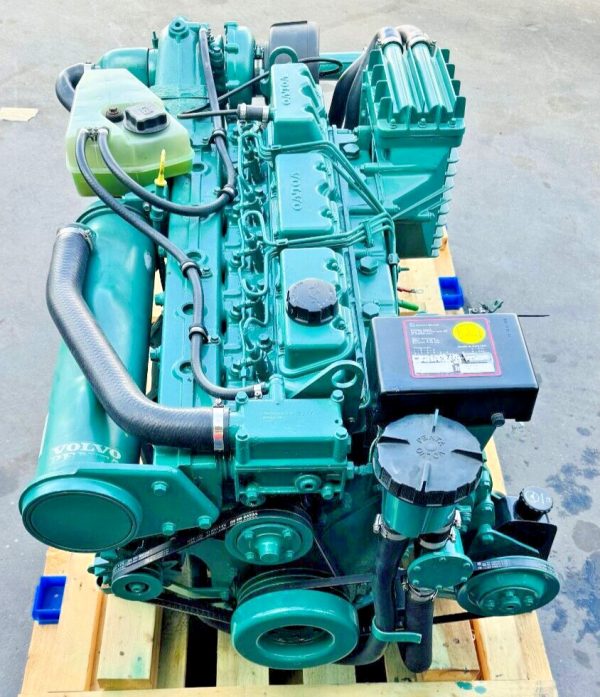

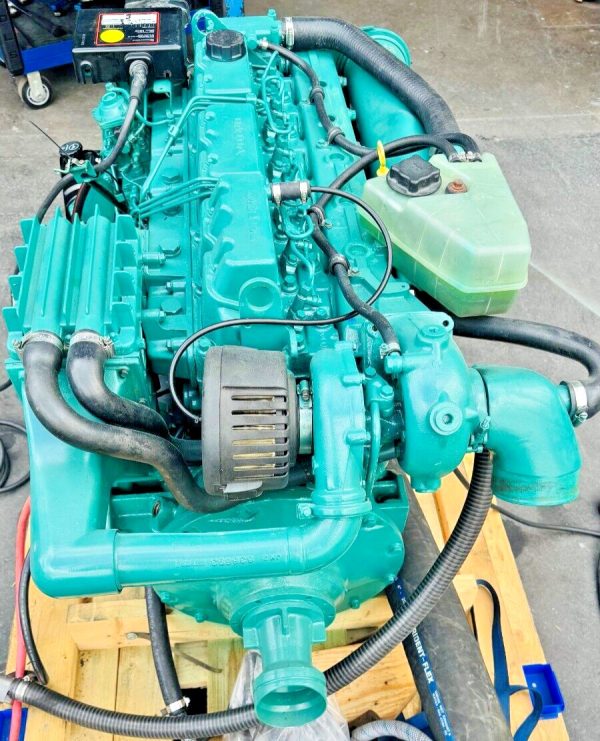

On Sale Genuine Volvo Penta Ad41P-A Only US$ 5.900.00, Used Diesel Engine 200Hp. The Volvo Penta AD41P-A is a 6-cylinder, 4-stroke, direct-injected turbocharged marine diesel engine with aftercooler and Duoprop drive.
USED, RUNNING VERY WELL, STARTS EASY, GOOD OIL PRESSURE, REBUILD INJECTION PUMP AND INJECTORS, VALVE ADJUSTMENT DONE, COOLERS CLEANED, RECENTLY REPLACED TURBO AND SERVICED. TEST RAN AT SHOP.
Engine Specifications
- Configuration: In-line 6-cylinder
- Operation: 4-stroke diesel, direct-injected
- Aspiration: Turbocharged with a seawater-cooled aftercooler
- Crankshaft Power: 200 hp (147 kW) @ 3800 RPM
- Propeller Shaft Power: 188 hp (138 kW) @ 3800 RPM
- Displacement: 3.59 liters (219 cubic inches)
- Bore & Stroke: 92 mm x 90 mm (3.62″ x 3.54″)
- Compression Ratio: 17.5:1
- Dry Weight: 538 kg (1,186 lbs) including the DP outdriveÂ
Operating Guidelines & Performance
- Wide Open Throttle (WOT) Range: 3700–3900 RPM
- Recommended Cruise Speed: 3200–3600 RPM
- Turbo Engagement Threshold: ~2600 RPM (planing speed)
- Max Crankshaft Torque: 460 Nm (339 lb-ft) @ 2500 RPM
- Exhaust Temperature: 413°C (775°F) at the turbocharger connection flange at max RPMÂ
Fluid Capacities & Mechanicals
- Engine Oil Capacity: Approximately 11 liters (use VDS-3 or equivalent marine diesel oil)
- Cooling System: Fresh-water cooled engine block with a raw-water heat exchanger loop
- Electrical System: 14V / 60A alternator with a 3.0 kW starter motor
- Injection System: Rotor-type injection pump with a mechanical governor and built-in smoke limiterÂ
Standard Outdrive Pairings
- Outdrive Model: Volvo Penta Duoprop DP-E
- Standard Gear Ratios: 1.78:1 or 1.95:1
- Steering & Trim: Standard integrated power steering with an electrically operated hydraulic power trim unit
