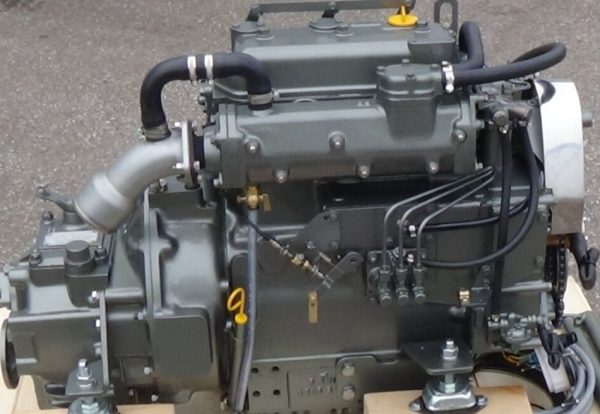

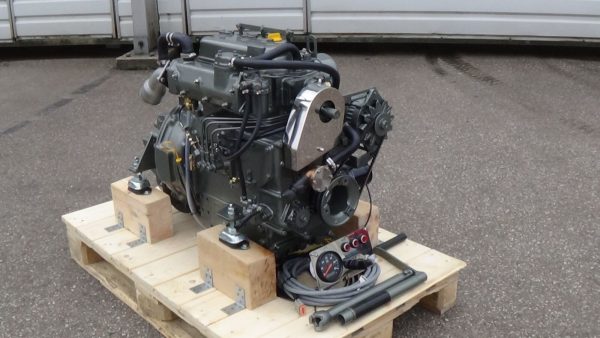

Hot Sale YANMAR 3QM30H with KH18 Ratio 2.03 Only US$ 7.800.00. Specific type of the engine, because of high cylinder capacity even with only 30HP and sharp torque curve, can use big diameter props and push very heavy loads. Dry weight 270kg, 30HP at 2.600 rpm, With KH18 Gearbox Ratio 2.03
Solid thick liners (standard size of 88mm) allowed to rebore them to oversize of 90mm which will supply an extra +HP because of bigger combustion cameras
YANMAR 3QM30H with KH18 Ratio 2.03 Specifications
- Type: 4-stroke, vertical, water-cooled marine diesel
- Cylinders: 3
- Horsepower: 30 hp at 2,600 RPM
- Displacement: 1.29 L (78.7 cubic inches)
- Cooling: Heat exchanger/freshwater cooled (indicated by the ‘H’) or raw-water cooled
- Aspiration: Naturally aspirated
- Starting: 12V electric starter
- Rotation: Counter-clockwise viewed from the flywheelÂ
Transmission (KH18) Specifications
- Model: Kanzaki KH18 mechanical wet-type single-disc clutch
- Gear Ratio: 2.03:1 (Forward)
- Recommended Oil: ATF-A (Automatic Transmission Fluid Type A
