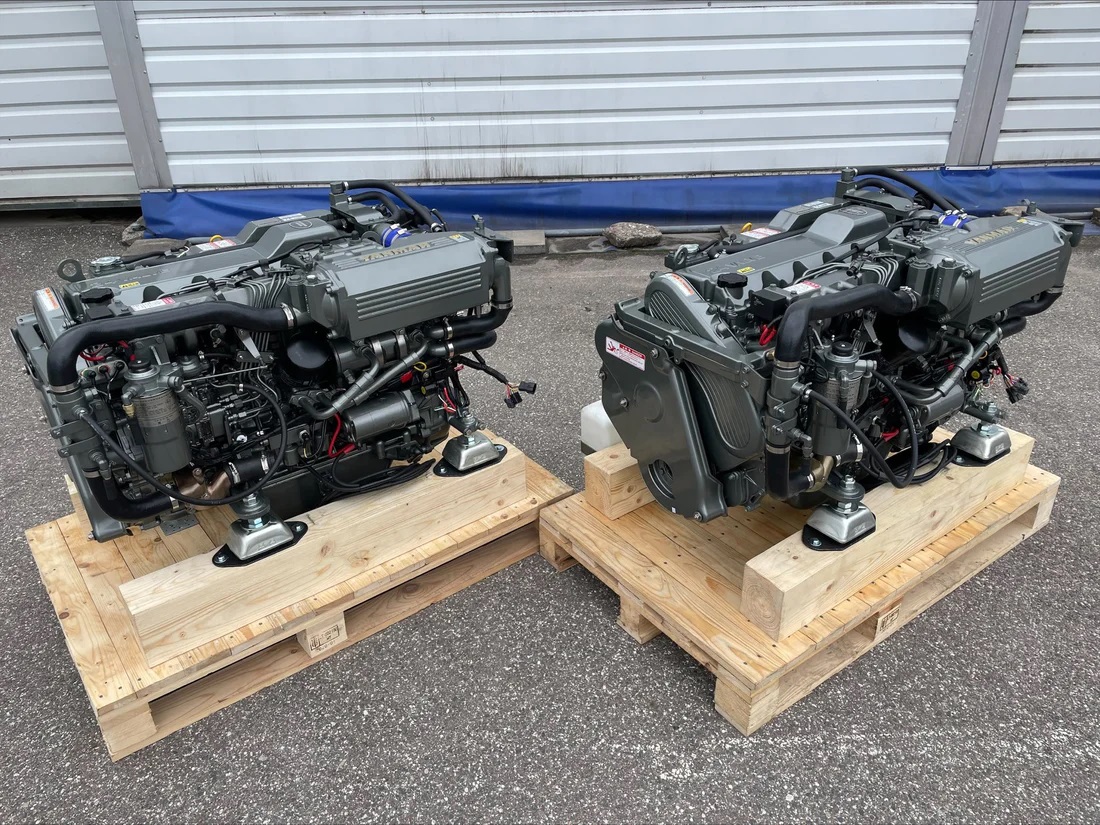

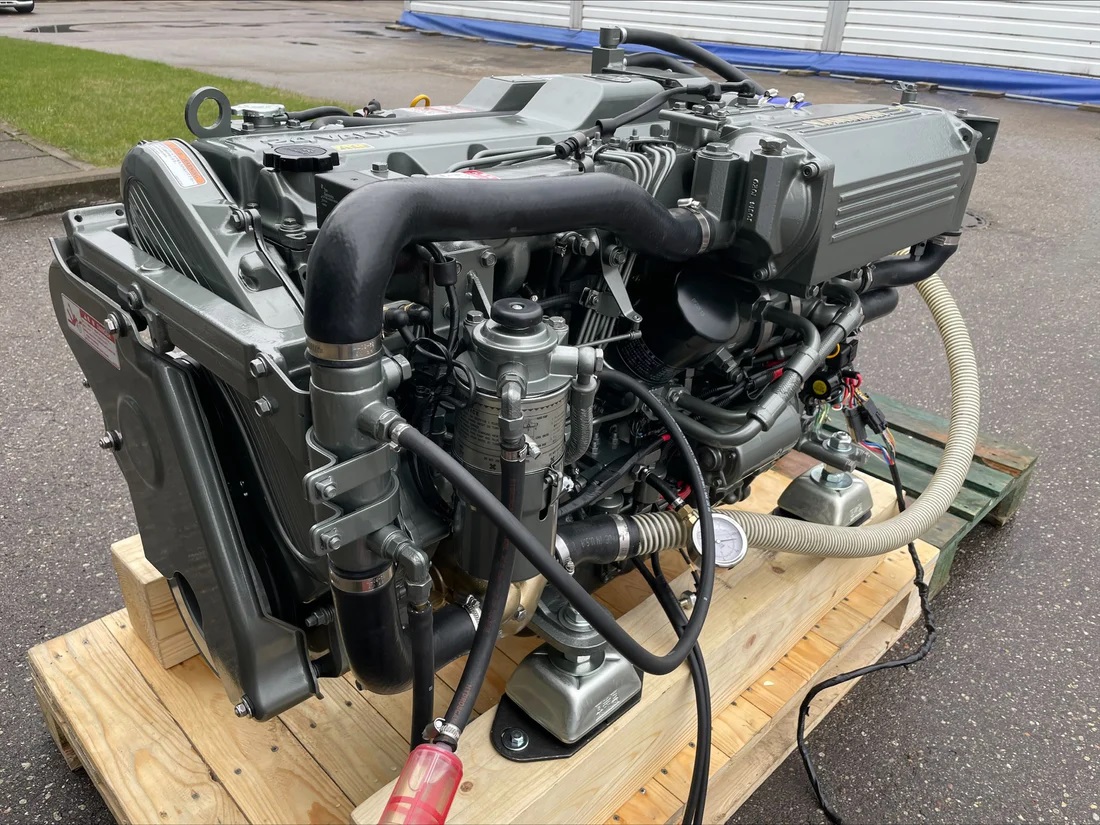

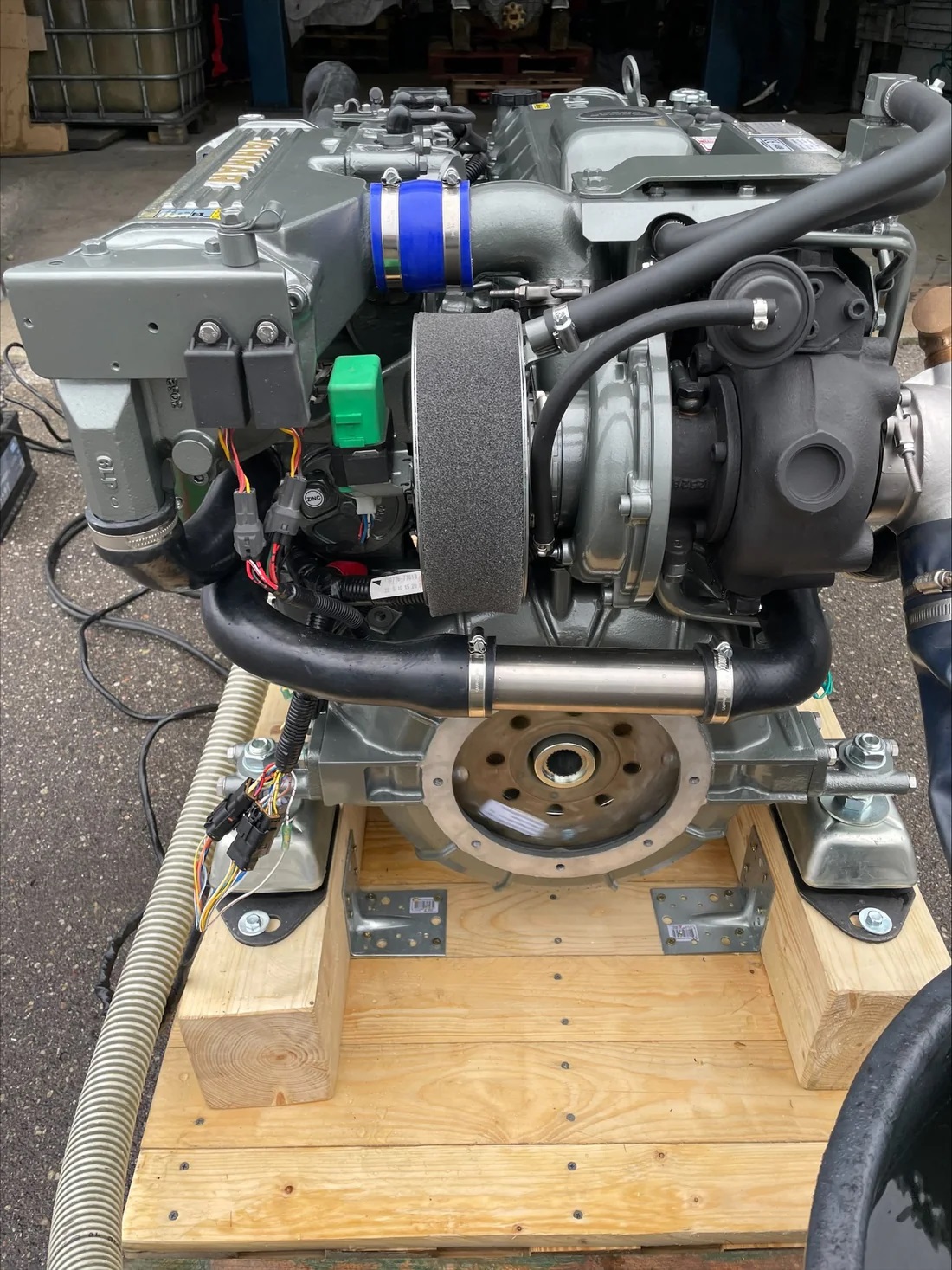

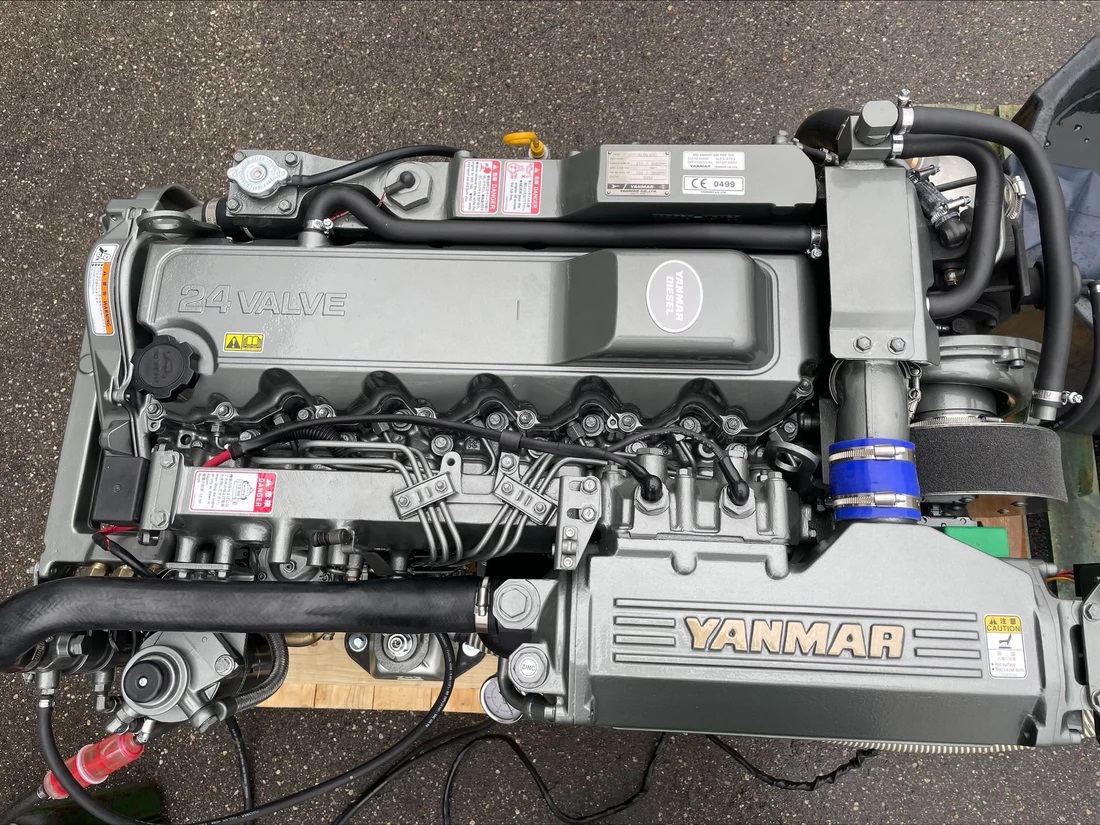

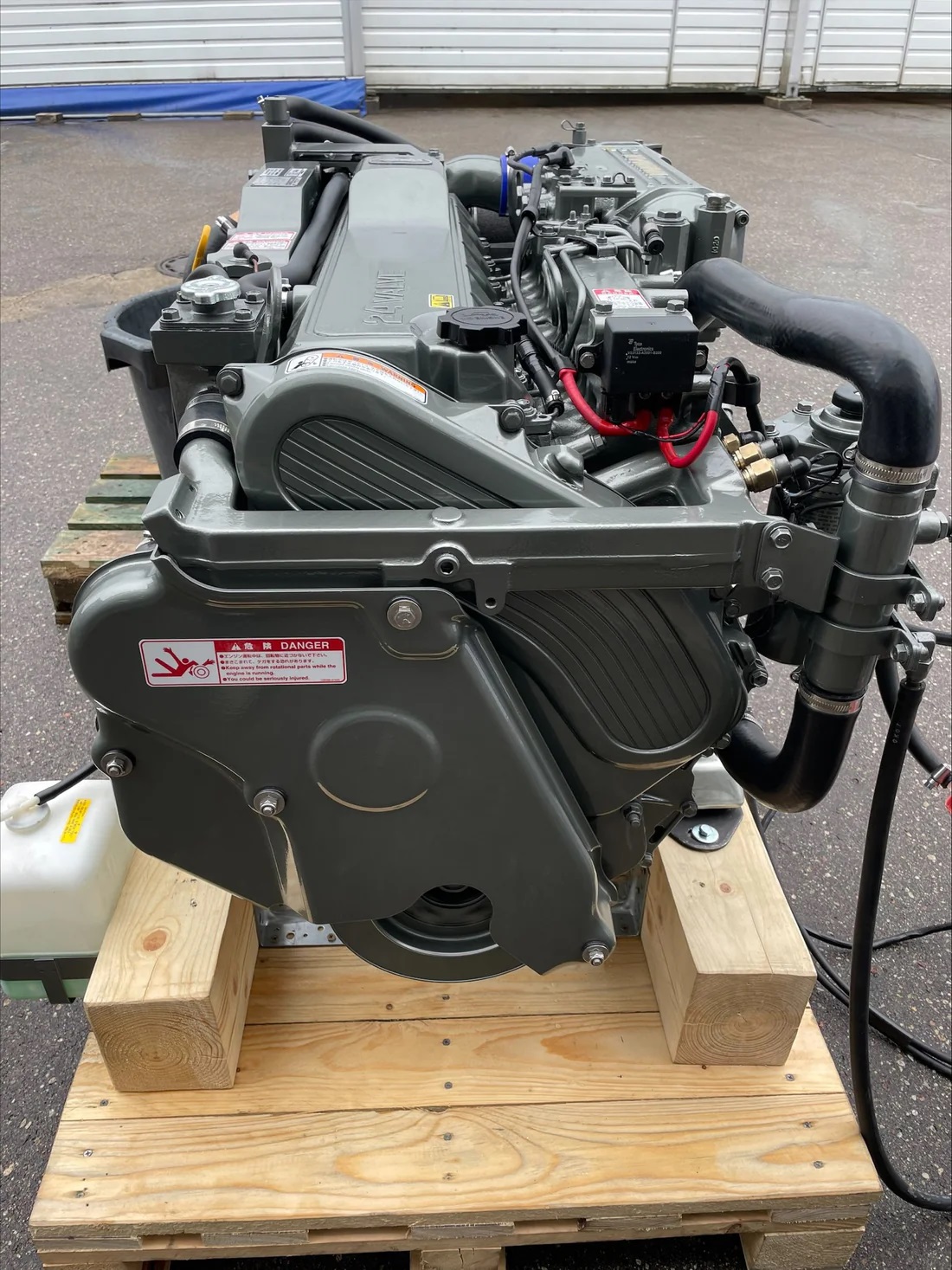

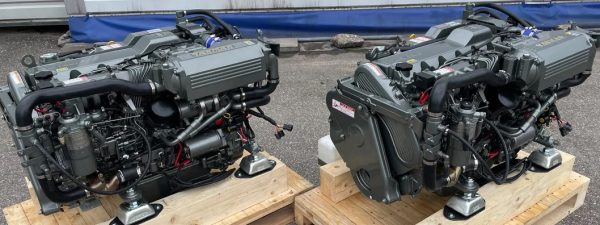

On Sale 2 Unit YANMAR 6LPA-STP 315HP Only US$45.000.00.
Performance & Output
- Maximum Output: 232 kW (315 mhp) at 3,800 RPM per unit.
- Continuous Rating: 188 kW (255 mhp) at 3,600 RPM per unit.
- Base Block Engine: Heavily ruggedized marinized version of the Toyota Land Cruiser 100-series engine (1HD-FTE).
Core Technical Specifications
- Configuration: 4-stroke, vertical, water-cooled, 6-cylinder inline diesel.
- Displacement: 4.164 Liters (254 cu. in.).
- Bore x Stroke: 94 mm x 100 mm (3.70 in x 3.94 in).
- Aspiration: Turbocharged with a wastegate and seawater-cooled intercooler.
- Combustion: Direct injection with an in-line mechanical injection pump.
- Valves: 24 valves (4 valves per cylinder).Â
Systems & Mechanics
- Cooling System: Closed freshwater cooling loop by centrifugal pump, alongside a rubber impeller seawater pump.
- Lubrication: Forced enclosed lubrication system.
- Rotation: Counterclockwise when viewed from the stern (flywheel side).
- Engine Management: Fully mechanical control handles and fuel systems.
- Electrical: 12V system featuring a 2.5 kW starter motor and an 80A alternator per engine.Â
Physical Dimensions & Weight (Per Unit)
- Dry Weight: 408 kg (899 lbs) without the marine gearbox.
- Dimensions (L x W x H): Approximately 1,220 mm x 666 mm x 739 mm (varies slightly by accessory configuration).
Dual-Unit Installation Requirements
- Combined Output: 630 HP at 3,800 RPM.
- Combined Mass: 816 kg (1,798 lbs) dry bobtail weight.
- Environmental Status: Complies with EU RCD 1, US EPA Tier 2, IMO Tier 2, and BSO II standards.
- Common Gearbox Pairings: Frequently installed with twin mechanical gearboxes like the ZF63A or KMH50A.
