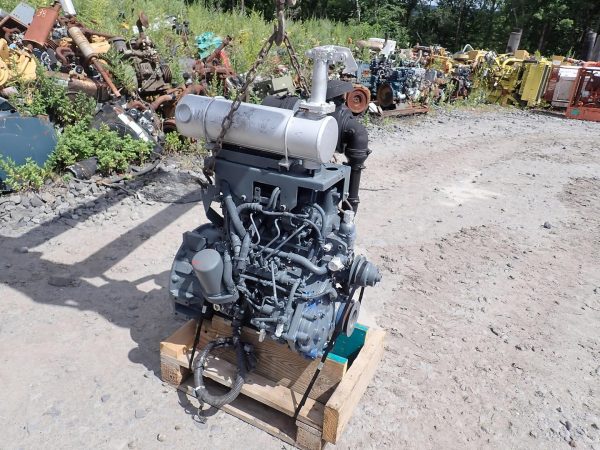

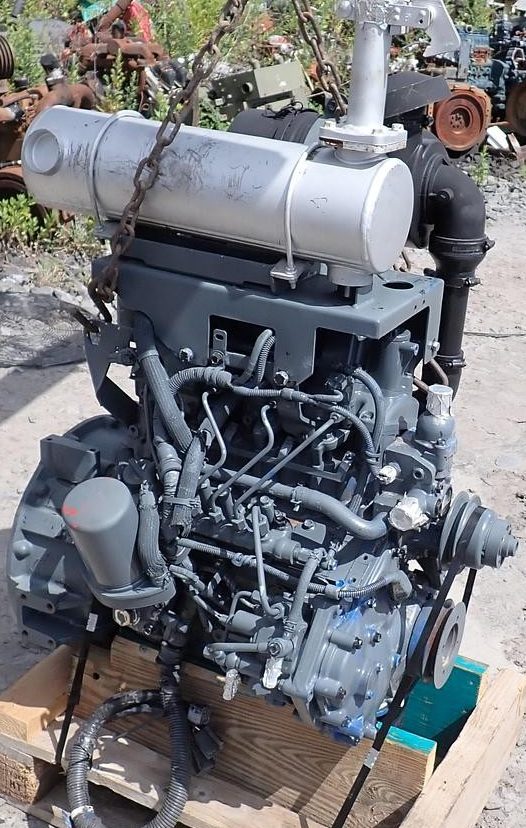

On Sale 2016 Isuzu 4LE2TDZAA-01 diesel engine, turbocharged, common rail electronic fuel system, 48 HP at 2400 RPM rating, emissions family GSZXL02.2ZTA. EXCELLENT RUNNING ENGINE, TEST RAN CLEAN W/ GOOD OIL PRESSURE AND NO SMOKE OR BLOWBY OBSERVED. HARD TO FIND ENGINE.
Isuzu 4LE2 Turbo Diesel Engine Specifications
- Displacement: 2.179 Liters (134.3 cubic inches)
- Configuration: Inline 4-cylinder, 4-stroke, overhead valve (OHV)
- Aspiration: Turbocharged (4LE2T) or Turbocharged Charge Air Cooled (4LE2X)
- Power Output (Variable Speed): 48.3 HP (36 kW) @ 2400 RPM
- Power Output (Constant Speed / Genset): 40.2 HP (30 kW) @ 1800 RPM
- Bore & Stroke: 85 mm x 96 mm (3.35 in x 3.78 in)
- Compression Ratio: 18.8:1
- Firing Order: 1-3-4-2Â
Mechanical & Fuel System
- Fuel System: Direct Injection
- Fuel Consumption: 0.384 – 0.403 lb/HP-hr
- Emissions Equipment: Cooled Exhaust Gas Recirculation (EGR) and a maintenance-free Diesel Oxidation Catalyst (DOC) to meet strict emission standards.
- Electrical System: 12V system featuring a 35A alternator and a 2.0 kW starter.
Fluid Capacities & Weight
- Dry Weight: Approximately 218 kg (480.6 lbs) for the full turbo assembly.
- Coolant Capacity (Block): 4.1 Liters (4.3 quarts)
- Oil Capacity: 10.4 Liters (11.0 quarts) with a deep sump pan designed to handle up to a 30-degree inclination angle.
Mustafa vulkan –
Sounds super healthy, no weird noises at all.
