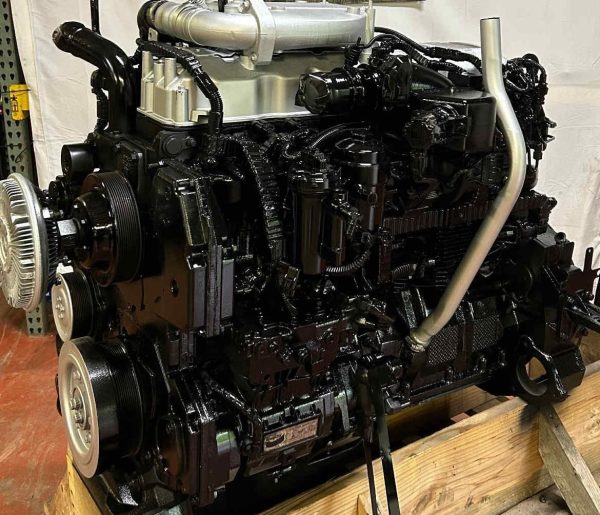

Hot sale 2011 International Maxxforce DT Diesel Engine 270HP, Approx. 197K Miles, 7.6-liter inline-6 ​​diesel engineBuilt on the legendary DT466 architecture, this EPA10-compliant engine features a twin-turbocharger configuration and a wet-line cylinder design. It is widely used in medium-duty commercial trucks.
2011 International Maxxforce DT Diesel Engine 270HP Specifications
- Engine Type: Inline 6-Cylinder, 4-Stroke Diesel
- Displacement: 7.6 L (466 cu in)
- Bore and Stroke: 117 mm × 119 mm (4.59 in × 4.68 in)
- Aspiration: Series Sequential Twin-Turbocharged (Compound Turbo)
- Emissions: EPA10 with EGR and DPF (Diesel Particulate Filter)
- Valvetrain: Overhead Cam (OHC), 4 Valves per Cylinder
- Cylinder Liners: Wet-sleeve designÂ
Performance Ratings
- Horsepower: 270 HP @ 2,200 RPM
- Peak Torque: 860 lb-ft @ 1,300 RPM
- Idle Speed: ~700 RPM (No Load)
- Governed Speed: ~2,600 RPMÂ
Fluid Capacities & System Specs
- Lube Oil Capacity: ~28 Quarts (26.5 Liters) with filter
- Cooling System Capacity: Varies by vehicle application (Engine only is approx. 14 Quarts / 13.2 Liters)
- Oil Pressure: 45 – 65 psi (Operating Range)
- Compression Ratio: 16.0:1
Key Components & Emissions
- Fuel System: Electro-Hydraulic Common Rail
- Emissions System Components: Exhaust Gas Recirculation (EGR), Diesel Particulate Filter (DPF), and Diesel Oxidation Catalyst (DOC)
- ECM: 32-bit processor
